Wulftec WCW

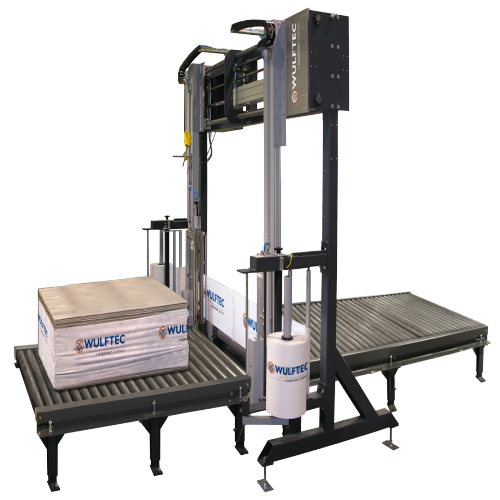

WCW 500 x 500 1

Video

Banner applicator

Designed with versatility and reliability in mind, the Wulftec Automatic Banner Applicator applies a printed banner that can display your company logo or a message around the perimeter of the load… customers get more name recognition. Because it is a “Stand Alone System”, the Automatic Banner Applicator can be installed above any conveyor line, before or after a stretch wrapper or strapper unit, it can also be retrofitted on any existing line.

  • 4,000lb load weight capacity
  • The control panel is UL508A approved
  • 100% structural steel construction
  • Superior Electrical/Electronic Design including Allen Bradley MicroLogix PLC and AC drives
  • Wulftec’s exclusive 30″ NO-THREAD® Powered Pre-Stretch Carriage
  • Lifetime warranty on prestretch rollers blue compound
  • Readily available non-proprietary parts
  • Motors speed control are made through AC frequency drives
Production Rate
    • 70 loads per hour
Load Weight
    • 4000 lbs
Minimum Load Size
    • 24″ W
    • 10″ H
Maximum Load Size
    • 48″ W
    • 60″ H
Machine Dimensions
    • 36″ L
    • 149″ W
    • 138″ H
Approximate Shipping Weight
    • 4400 lbs
Electrical Requirements
    • 460 V / 3 ph /60Hz 30A
Pneumatic Requirements
    • 10 cfm @80 psi
Controls
    • Allen Bradley Micro Logix 1200 PLC
    • Allen Bradley Panel View 600 Plus interface
    • 24V control system
    • Current overload protection
    • NEMA 4/12 control cabinet with quick disconnect
    • Power on/off lockable switch and indicator light
    • One emergency stop station on the main control panel
    • Manual function for Welding bar Open/Close
    • Intuitive diagnostic alarms
    • Cycle counter
    • Reset function
    • Alarm beacon
Film Delivery System
    • 30″ Film width
    • Mechanical tensioning system
    • Adjustable film tension
    • Sensing device for film out/broken with visual alarm

Two-Sided Cling

    • Item #370267, 20″ x 5000′ 75ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370264, 20″ x 5000′ 80ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370265, 20″ x 5000′ 80ga Castle cast machine stretch film boxed, 40 rolls/skid
    • Item #370335, 20″ x 4000′ 115ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370329, 20″ x 4000′ 120ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370330, 30″ x 4000′ 120ga Castle cast machine stretch film, 20 rolls/skid

Differential Cling

    • Item #370268, 20″ x 6000′ 70ga Castle cast machine stretch film, 40 rolls/skid

One-Sided Cling

    • Item #370274, 20″ x 8000′ 55ga SSC Castle cast machine stretch film, 40 rolls/skid
    • Item #370266, 20″ x 5000′ 63ga SSC Castle cast machine stretch film, 50 rolls/skid
    • Item #370303, 20″ x 6000′ 70ga SSC Castle cast machine stretch film, 40 rolls/skid
